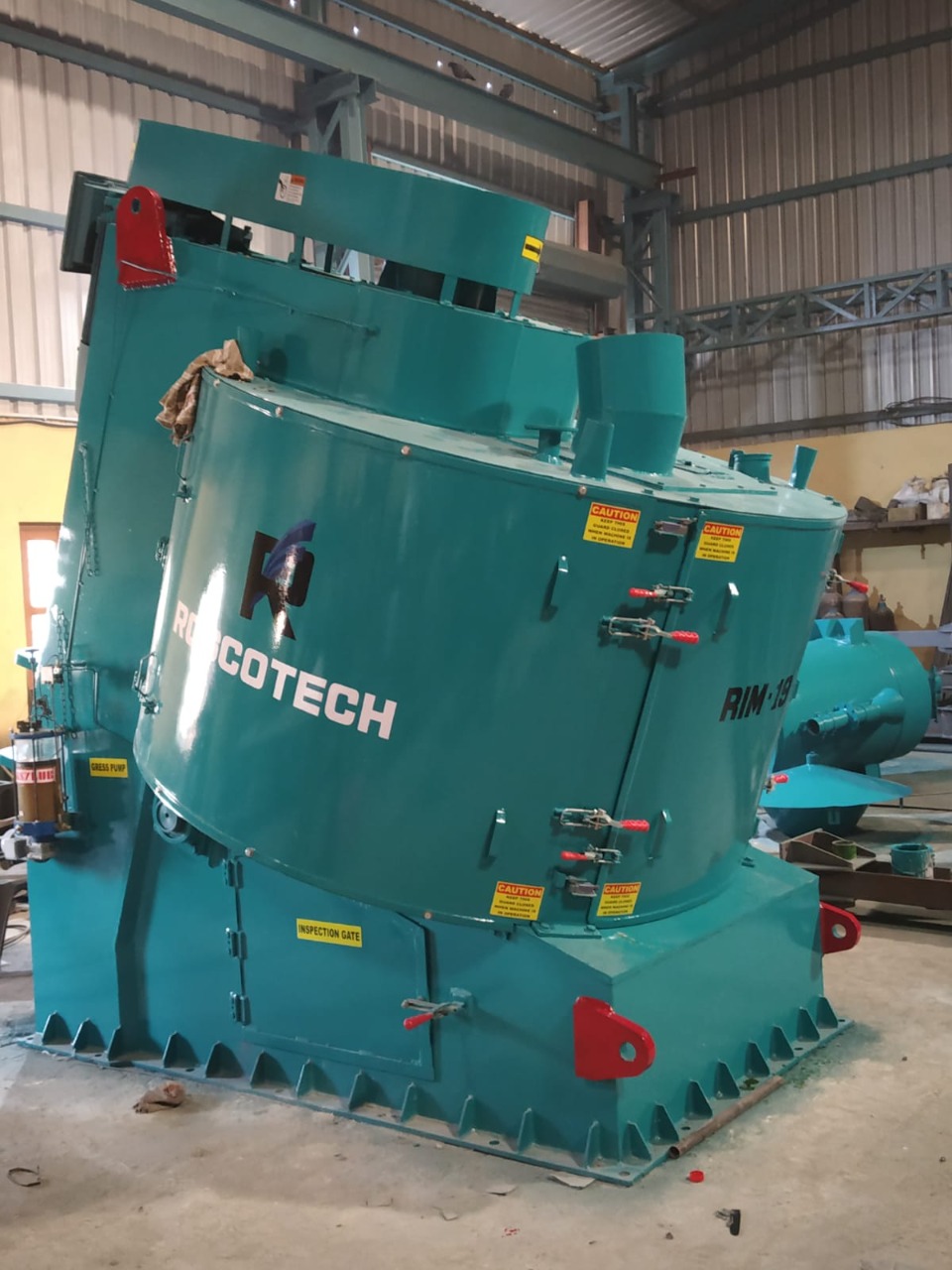

We are a Manufacturer, Supplier, and Exporter of Intensive Counter Current Mixers. The Intensive Counter Current Mixers applies the counter-current mixing principle which provides an optimal homogeneous mixture in the shortest time. We offer an extensive range of Mixers with outputs from 50 liters to 2,000 liters. This makes them suited to a wide range of users, from small builders to ready-mix plants.
Intensive Counter Current Mixers can handle anything from wet and dry raw materials. These Intensive Counter Current Mixers rotate around the vertical axis, delivering intense countercurrent mixing action and transferring all the mixers into the material.
Our Intensive Counter Current Mixers come with a highly durable structure and body. It makes our Intensive Counter Current Mixers an ideal option for heavy mixing. As a well-reputed company, we are indulged in offering an extensive spectrum of Intensive Counter Current Mixers These Intensive Counter Current Mixers are processed at our manufacturing unit by our dexterous professionals employing high-grade raw metal and innovative machinery.

Features
- High performance mixing effect, consistent high quality homogeneous mixture batch after batch
- Compact design, easy to install, suitable for new plant and improving the existing production line.
- Robust construction, low wear, built to last, long service life.
Easy for preventive & routine maintenance
- Rugged design allows direct installation.
- Raw material machinery
- customers' requirements based on installation
Product details
SR NO | DESCRIPTION | RV 11 | RV 15 | RV 19 |
1 | SIZE OF drum and height seal bar | Dia 1088 x 622 | Dia 1520 x 820 | Dia 1900 x 890 |
2 | Total volume ( in ltr ) after Lining | 1100 | 1500 | 2500 |
3 | Operating volume ( in Ltr ) | 500 | 750 | 1500 |
4 | Dry Powder ( in Kg) | 175-200 | 275-300 | 575-625 |
5 | Appox, Water Addition ( in Ltr ) | 70-80 | 100-125 | 185-225 |
6 | Batch weight wet basis ( in kg ) | 245-280 | 375-425 | 760-850 |
7 | POWER | |||
7.1 | Mixing Pan ( in K.W/ H.P) | 7.5/10 | 15 /20 | 22 /30 |
7.2 | Agitator ( in K.W / H.P ) | 30/40 | 55/75 | 110/150 |
7.3 | Power Pack ( In K.W/H.P ) | 2.2/3.0 | 2.2/3.0 | 2.2/3.0 |
7.4 | Lubricaion Pump ( In K.W/H.P ) | 0.2/0.5 | 0.2/0.5 | 0.2/0.5 |
8 | Tota batch time | 40-50 min | 40-60 min | 40-60 min |
